400-1200mm
River pebbles, cobblestones, quartz, limestone, basalt, granite, marble, iron ore, construction waste, etc.
Product Description

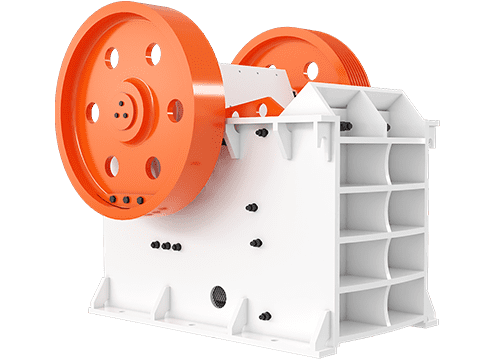

Jaw crusher is a common coarse crushing equipment, mainly used for crushing ores and rocks with high hardness. Its working principle is to squeeze and crush materials through the periodic movement of movable jaw and fixed jaw. With simple structure and easy maintenance, it is widely used in mining, building materials, metallurgy and other fields.It is characterized by high strength, reliability, durability and strong crushing force. It is characterized by large crushing size and high output. It is often used as primary crusher in various stone and ore crushing production lines.

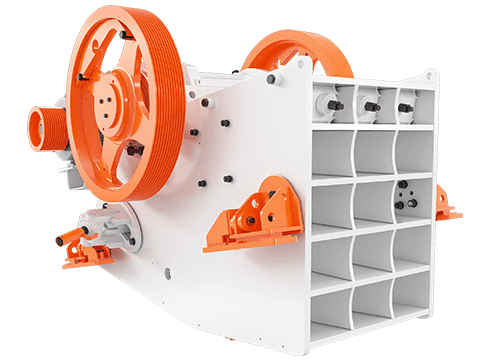

The European-style jaw crusher features a compact footprint, high crushing ratio, and smooth operation, offering significant advantages in terms of transportation, installation, maintenance, and adjustment. It has a wide range of applications and is suitable for processing basalt, quartz, granite, limestone, iron ore, and other materials. This equipment is widely used in the chemical, coal mining, and building materials industries, and is particularly well-suited for stationary and mobile rock crushing plants.
How to choose suitable European Jaw Crusher machine?
1. Easy Installation & Strong Adaptability
Compact modular design enables quick replacement of old crushers. Parts can be transported separately to job sites, greatly simplifying installation and delivery.
2. Sturdy Structure & Long Service Life
Frame adopts riveting and bolting without welding, delivering outstanding fatigue resistance. With premium casting technology and high-grade components, the machine runs stably and durably.
3. High Output & Efficient Crushing
Excellent feeding performance and large-angle crushing chamber ensure strong biting force. Stable and powerful movement guarantees sufficient crushing pressure and high operating efficiency.
How is works

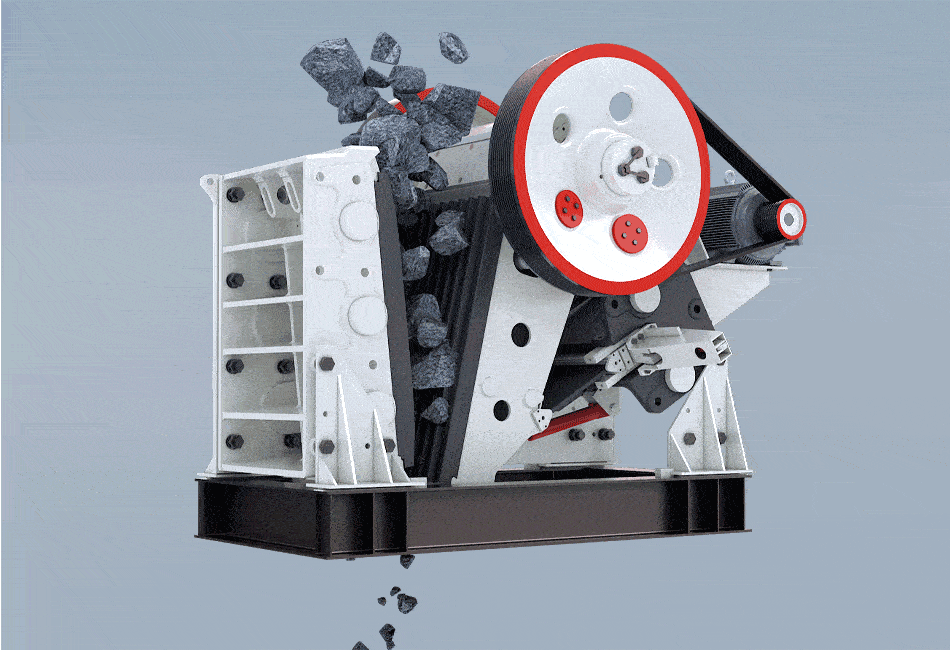

The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.
Technical Specifications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Particle Size
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
SERVICE SUPPORT

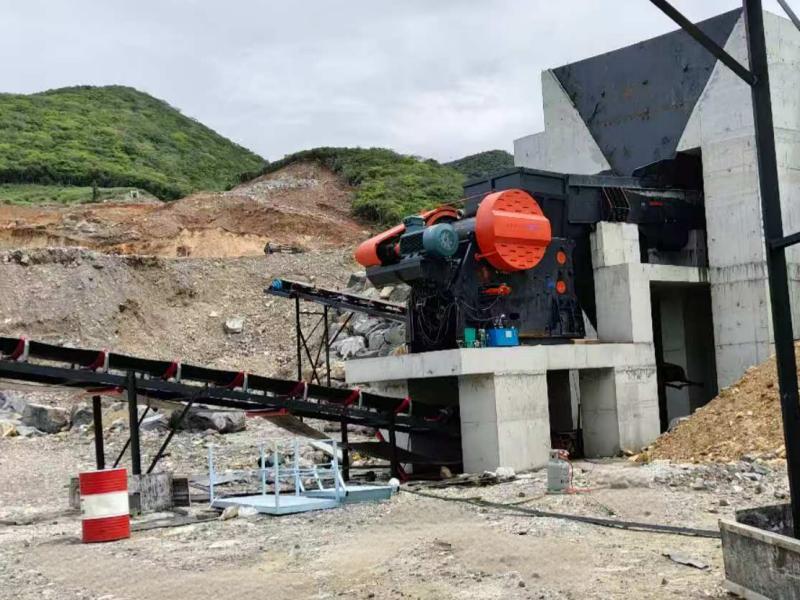

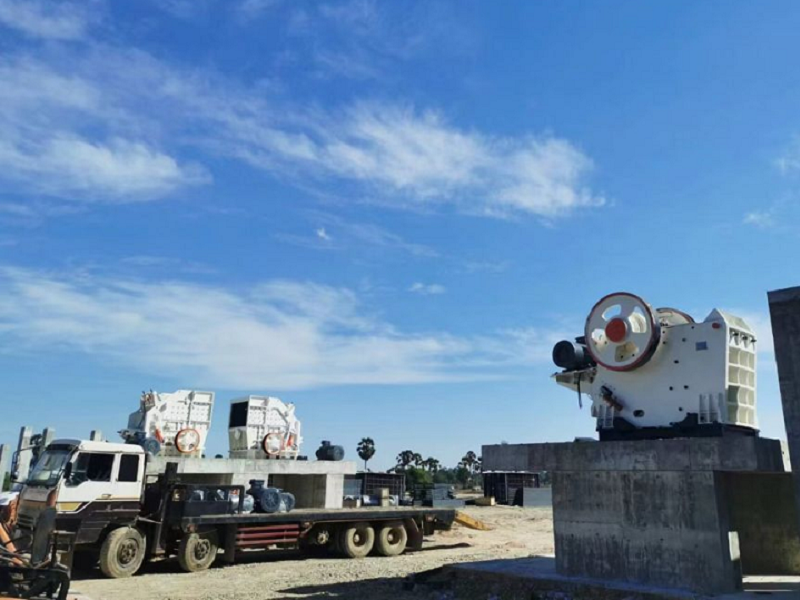

Engineering Case
