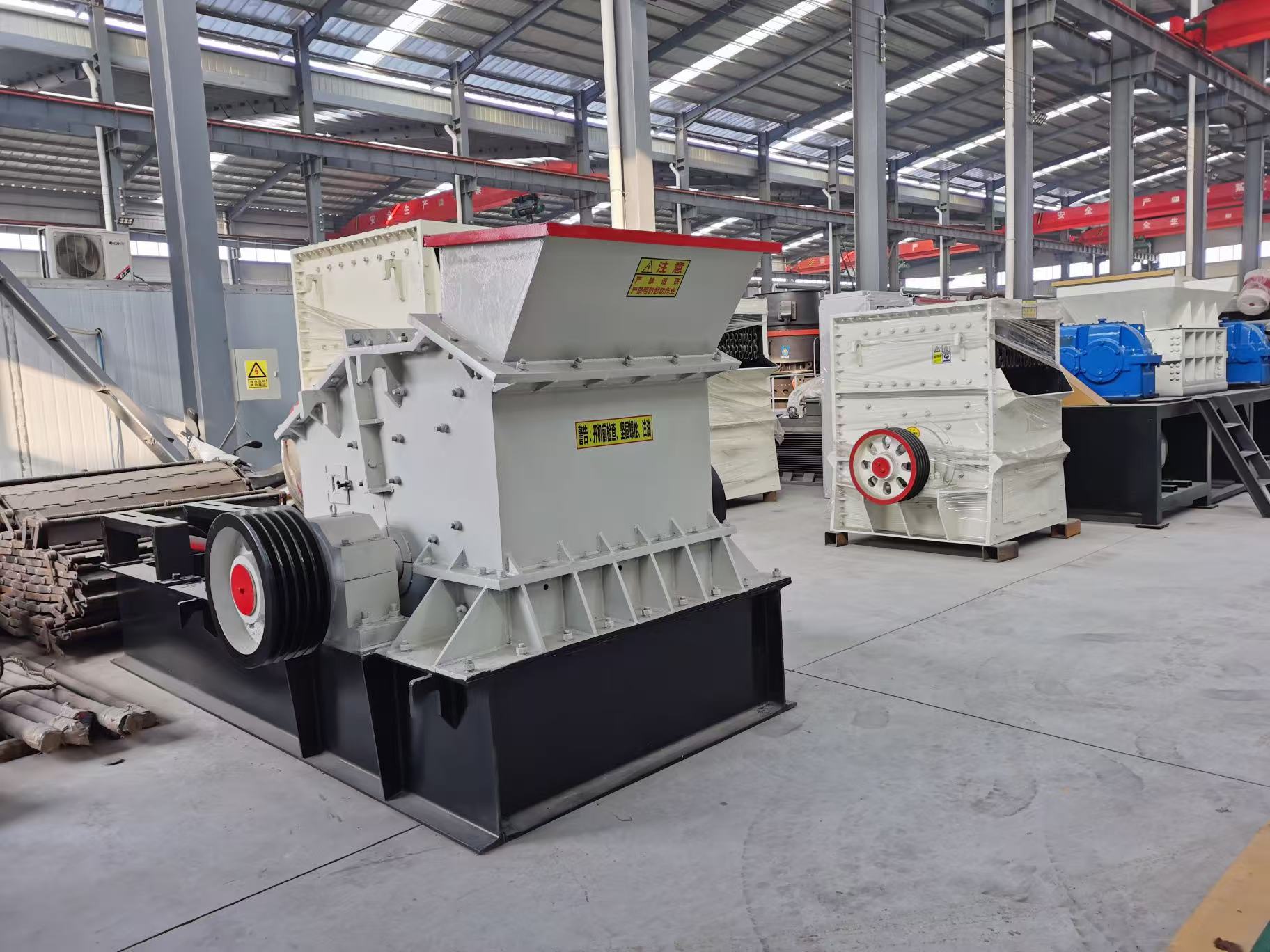

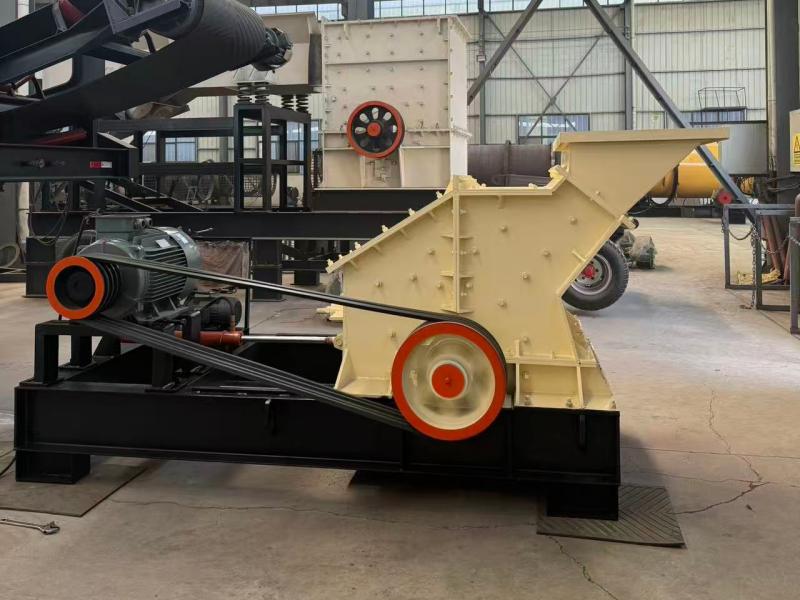

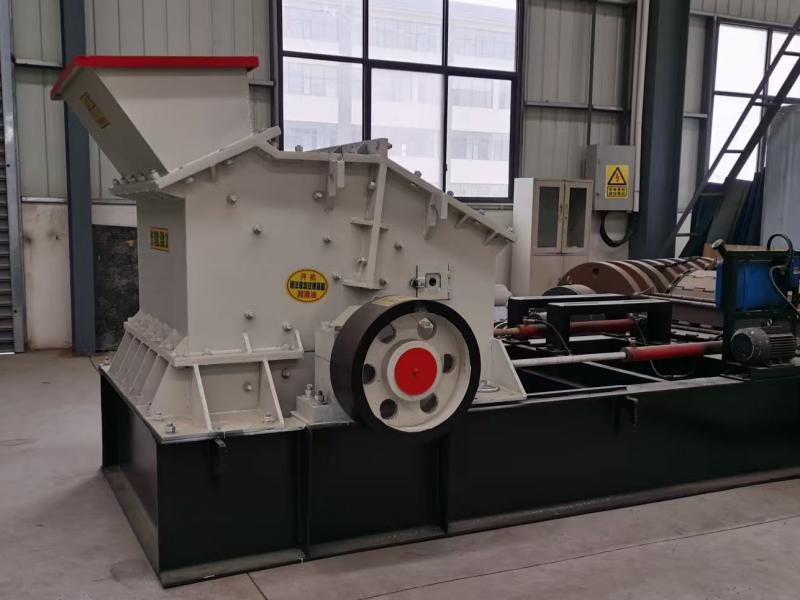

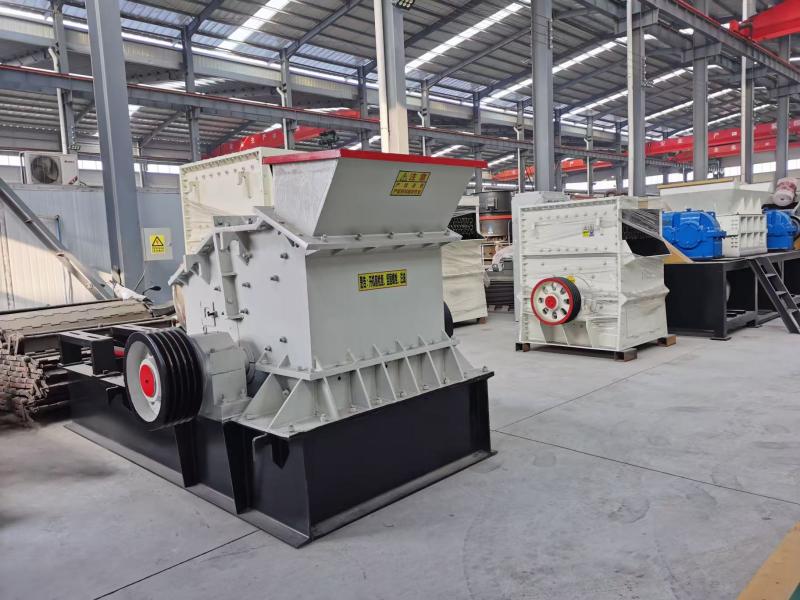

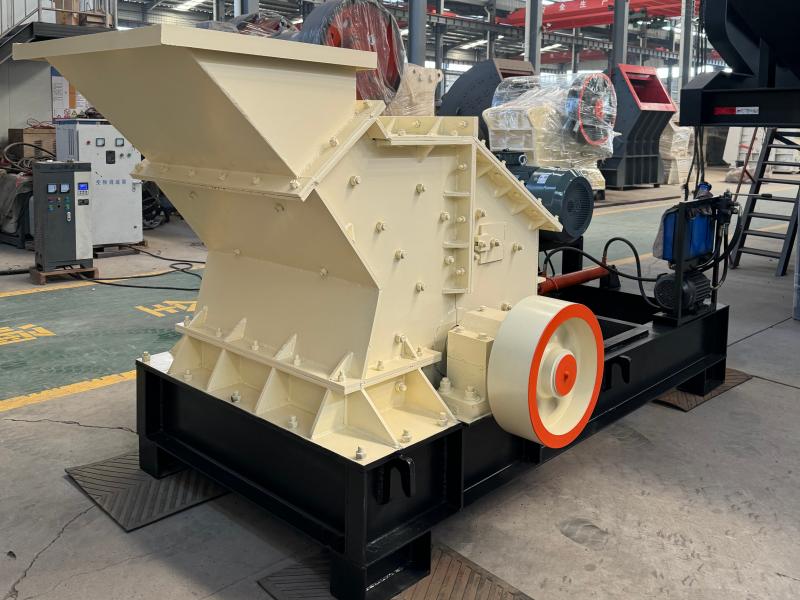

The high-efficiency fine crusher is primarily designed for the fine crushing of medium-hard and brittle materials, and is widely used in the mining, sand and gravel, building materials, metallurgy, and chemical industries.
Product Description
High-efficiency fine crushers are widely used in many key industries such as sand and gravel production, mining processing, infrastructure construction, building materials manufacturing, and construction waste recycling. They are mainly applied to finely crush various medium-hard and soft materials, including limestone, granite, basalt, river pebbles, quartz, calcite, iron ore, and non-ferrous metal ores. In quarry and sand-making plants, they produce high-quality aggregate and manufactured sand for highways, railways, bridges, dams, and real estate projects. In the mining industry, they undertake ore fine crushing operations to improve grinding efficiency and reduce energy consumption. They also play an important role in recycling construction waste such as concrete blocks and bricks, as well as processing cement clinker, refractories, ceramics, and other building materials. With stable performance, high crushing ratio, and uniform particle size, this equipment has become essential in modern industrial production, engineering construction, and resource recycling.
How to choose suitable High-efficiency Fine Crusher machine?
1.High crushing efficiency, fine & even discharge One-time forming, high output, low energy consumption, no need for secondary crushing.
2.Adjustable particle size for wide application Flexible discharge size to meet different fine aggregate and sand making requirements.
3.Compact structure, small footprint Small size, easy installation, ideal for small production lines and mobile crushing plants.
4.Wear-resistant parts, long service life High wear-resistant alloy blow bars and impact plates, low wear and low operation cost.
5.No clogging, no sticking No screen design, works well with wet and sticky materials without blockage.
6.Stable running, low noise & low dust Low vibration, good sealing, meets environmental protection standards.
7.Easy maintenance & simple operation Simple structure, convenient inspection, suitable for long-term continuous production.
How is works
The high-efficiency fine crusher adopts an impact crushing structure. Materials enter the crushing chamber from the feed inlet and are continuously impacted, collided and sheared by the blow bars on the high-speed rotating rotor. They are repeatedly crushed between the rotor and the impact plate.
Meanwhile, materials collide and grind with each other to quickly reach the required fine size. Qualified fine materials are discharged through the gap of the lower screen plate, while unqualified materials continue to circulate and crush in the chamber, finally achieving efficient fine crushing.
Technical Specifications
Model | Feed inlet size(mm) | Feed size(mm) | Dischargesize(mm) | Discharging gapAdjustment width(mm) | Capacity(t/h) | Electric Power(kw) |
800×400 | 400×185 | <120 | <5 | 5-20 | 20-30 | 30 |
800×800 | 550×330 | <180 | <5 | 5-20 | 35-45 | 45 |
1000×1000 | 1000×350 | <180 | <5 | 5-20 | 45-55 | 75 |
1200×1200 | 1200×450 | <180 | <5 | 5-20 | 100-110 | 132 |
1400×1400 | 1500×500 | <190 | <5 | 5-20 | 100-150 | 160 |
1600×1600 | 1600×550 | <190 | <5 | 5-20 | 170-210 | 200 |
1800×1800 | 1800×800 | <190 | <5 | 5-20 | 250-300 | 315 |
Particle Size
