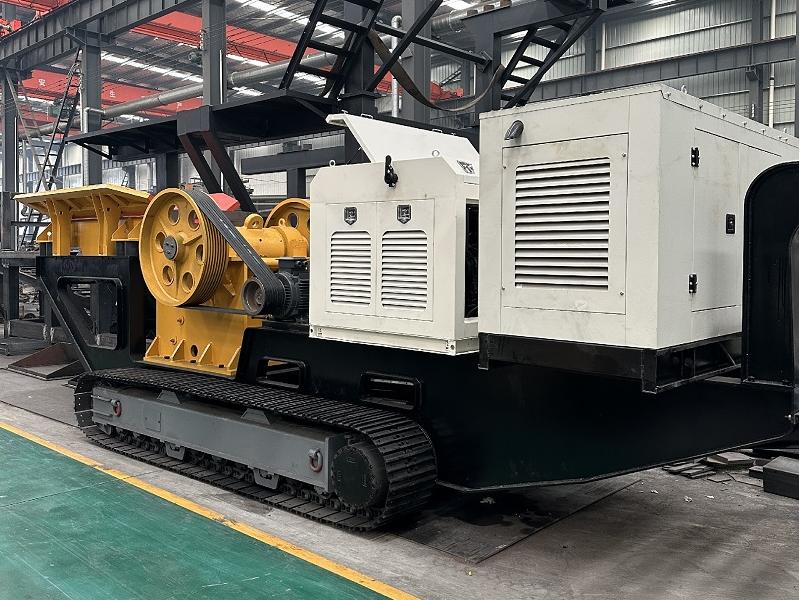

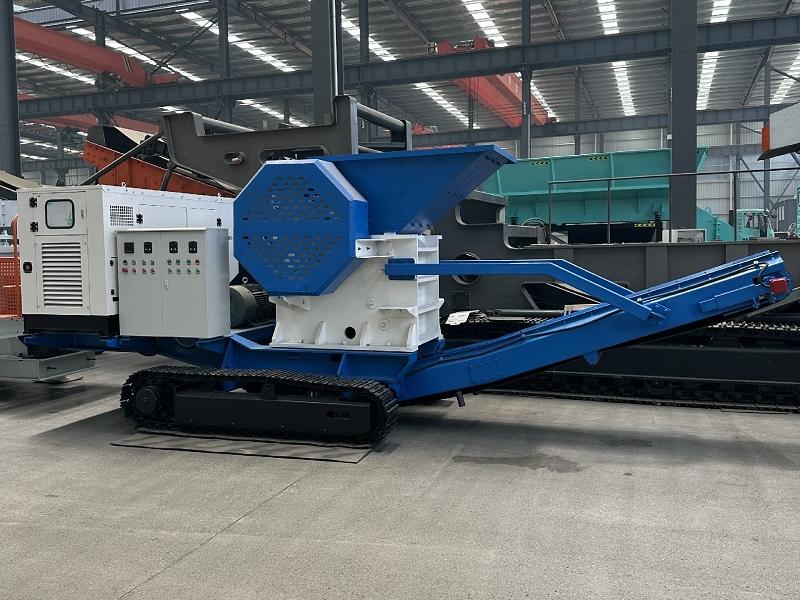

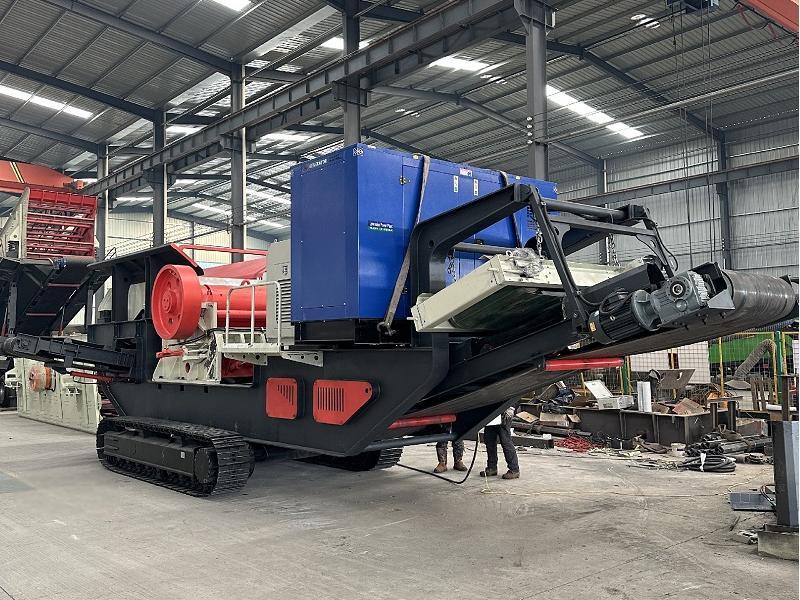

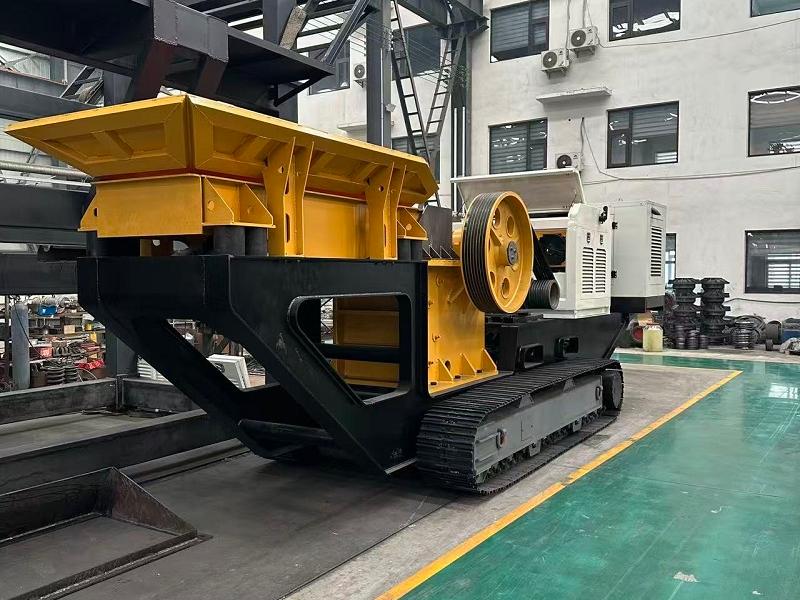

Crawler mobile crushing station
Crawler mobile crushing station
Crawler mobile crushing station
Crawler mobile crushing station
Crawler mobile crushing station
Crawler mobile crushing station
Feed particle size

0-950mm

Suitable Materials

Diabase, river pebbles, granite, basalt, limestone, gold ore, iron ore, etc.

SHARE THIS:

Product Description

Crawler type hydraulic driving mobile crusher is the mobile crushing and screening equipment with full hydraulic driving crawler vehicle chassis to meet the market demand. The crawler mobile crusher is mainly used for the processing of materials that often need to be relocated, such as metallurgy, chemical industry, building materials, hydropower and so on, especially for the operation of mobile stones such as expressways, railways, hydropower projects, etc. users can adopt various configuration forms according to the type, scale and requirements of processed raw materials.



How to choose suitable Crawler mobile crushing station machine?

1. The power system with sufficient power, reliable performance and excellent performance adopts Cummins diesel engine with low fuel consumption, low noise and reliable performance, providing a reliable, economic and environmental protection power source. The engine can be equipped with military low-temperature preheating start-up device, so that the equipment can be easily started in - 25C ° low-temperature environment.

2. The ship type structure has strong adaptability, all steel ship structure chassis has the characteristics of high strength, low grounding pressure, and has good adaptability to mountain and wetland.

3. Large driving force, strong torque, torque travel motor, large driving force and high reliability. The walking system adopts full power variable open hydraulic system with excellent performance and high reliability. It can make full use of the power of the engine. The main hydraulic components (pumps, valves, etc.) are imported from Japan to provide reliable power guarantee for the walking system.

4. Stepless variable speed travel imported servo pilot operation system, easy to operate, accurate control, can realize stepless variable speed travel.

5. Mature crushing equipment crushing and screening equipment are the mature products independently produced by the company, with compact structure, stable performance and reliability.

6. Hybrid energy device, hybrid pressure energy device and dual power intelligent transfer switch can be selected, which can make full use of local power resources, save operation cost and reduce CO2 and NOx emissions. In case of power interruption or under voltage, the diesel generator will be automatically switched to generate electricity to ensure the continuous operation of the equipment.


How is works

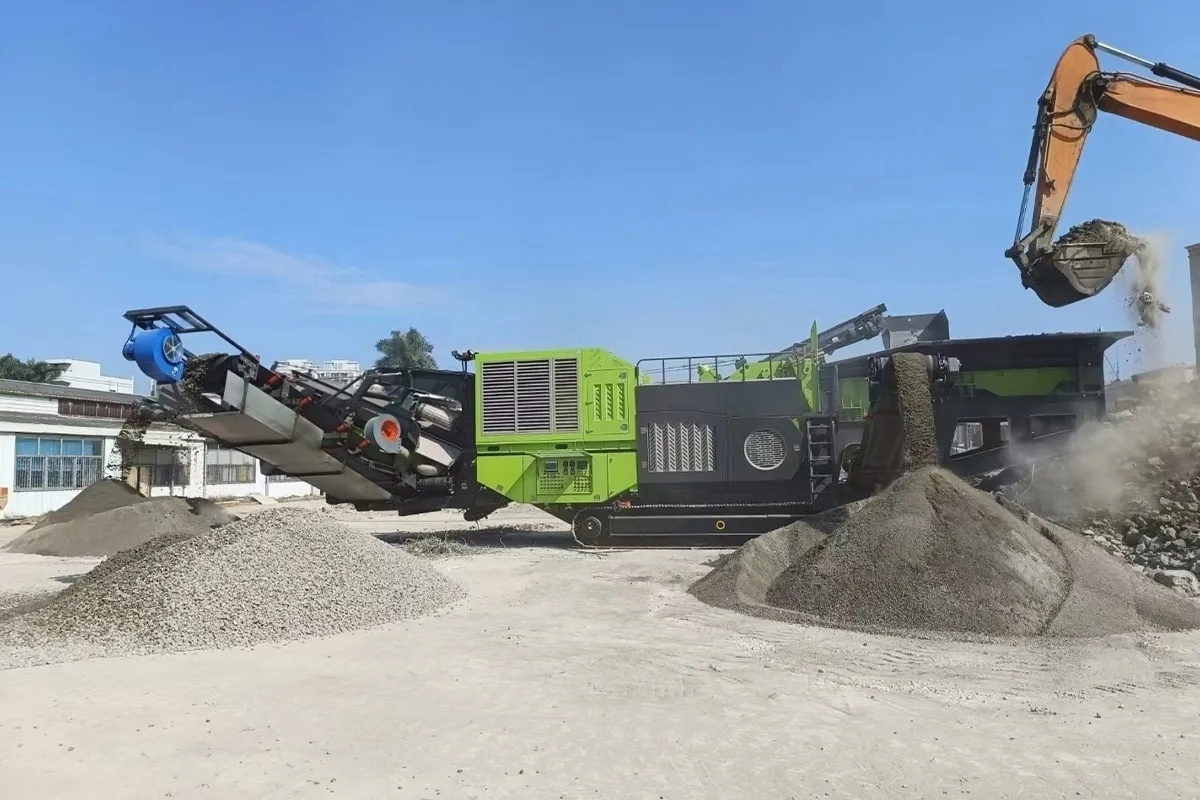

  The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.

Technical Specifications

Model

YMC80

YMC96

YMC106

YMC116

YMC120

Feeder

Model

GZD8035

GZD9638

GZD1142

GZD1142

GZD1242

Feeding Capacity

60-120t/h

100-200t/h

200-300t/h

200-300t/h

300-400t/h

Feeding Height

2900mm

3750mm

3900mm

3900mm

3900mm

Volume

2.2m³

3.2m³

3.2m³

3.2m³

3.2m³

Power

2×3.7Kw

2×5.5Kw

2×5.5Kw

2×5.5Kw

2×7.5Kw

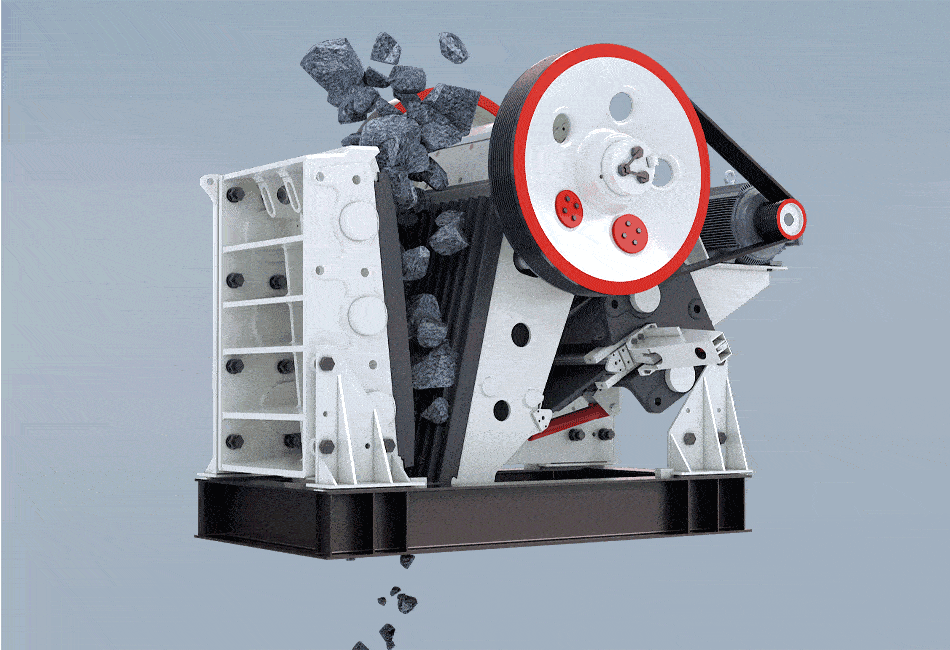

Jaw Crusher

Model

C80

C96

C106

C116

C120

Power

55Kw

90Kw

132Kw

132Kw

160Kw

Discharge Adjustment

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Main Discharge Belt

Size(Width x Length)

800×9000mm

1000×12000mm

1000×12000mm

1200×13000mm

1200×13000mm

Unloading Height

2400mm

2900mm

2900mm

3200mm

3200mm

Power

7.5Kw

11Kw

11Kw

15Kw

15Kw

Side Discharge Belt

Size(Width x Length)

500×3800mm

500×3800mm

500×3800mm

500×3800mm

500×3800mm

Unloading Height

1800mm

1800mm

1800mm

1800mm

1800mm

Power

3Kw

3Kw

3Kw

3Kw

3Kw

Iron Remover

Model

RCYD800

RCYD1000

RCYD1000

RCYD1200

RCYD1200

Generator

Primary Power

163Kw

225Kw

310Kw

310Kw

403Kw

Standby Power

180Kw

250Kw

345Kw

345Kw

448Kw

Structure

6-Cylinder Inline

6-Cylinder V-shape

6-Cylinder V-shape

6-Cylinder V-shape

8-Cylinder V-shape

Generator

Primary Power

150Kw

200Kw

280Kw

280Kw

360Kw

Standby Power

165Kw

220Kw

300Kw

300Kw

390Kw

Dual Power

Driving Concept

Diesel-electric Drive

Diesel-electric Drive

Diesel-electric Drive

Diesel-electric Drive

Diesel-electric Drive

Transport Parameters

Transport Length

12500mm

14500mm

15000mm

15000mm

15500mm

Transport Width

2850mm

2950mm

3000mm

3200mm

3200mm

Transport Height

3550mm

3550mm

3600mm

3600mm

3700mm

Installed Power

78.1Kw+70Kw

121Kw+70Kw

163Kw+90Kw

168Kw+115Kw

200Kw+115Kw

Complete Dry Fog Dust Suppression

Optional

Optional

Optional

Optional

Optional

Capacity

80-125t/h

100-250t/h

160-360t/h

200-450t/h

300-520t/h


Particle Size

Crushed product size
