0.4-18.5t/h
Calcium carbonate, limestone, dolomite, calcite, talc, quartz, diabase, gypsum, bentonite, etc.
Product Description

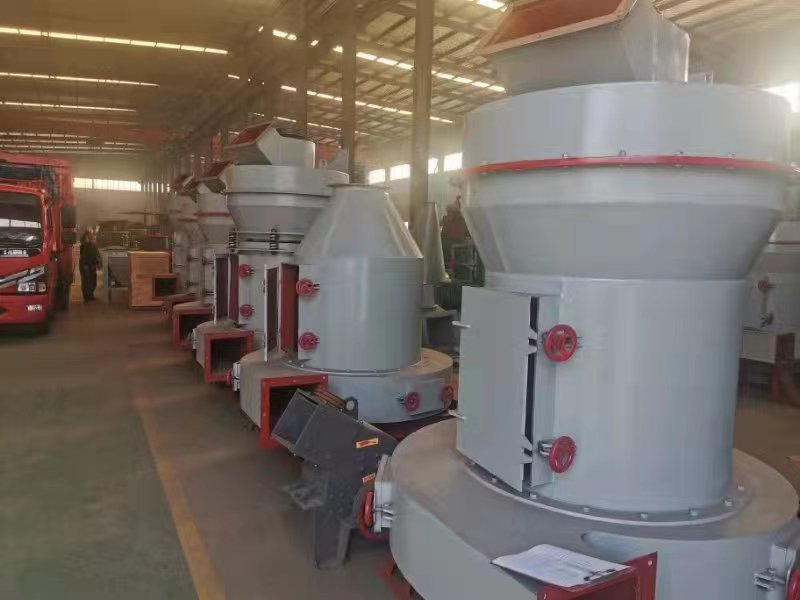

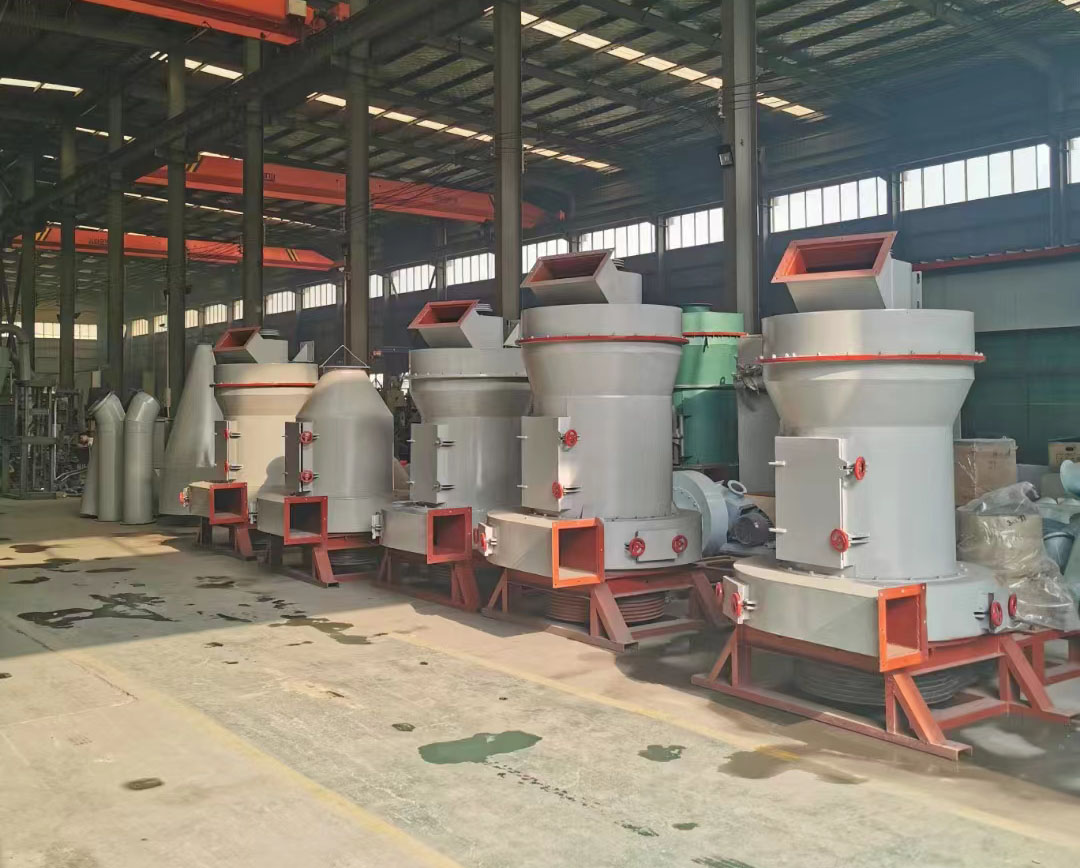

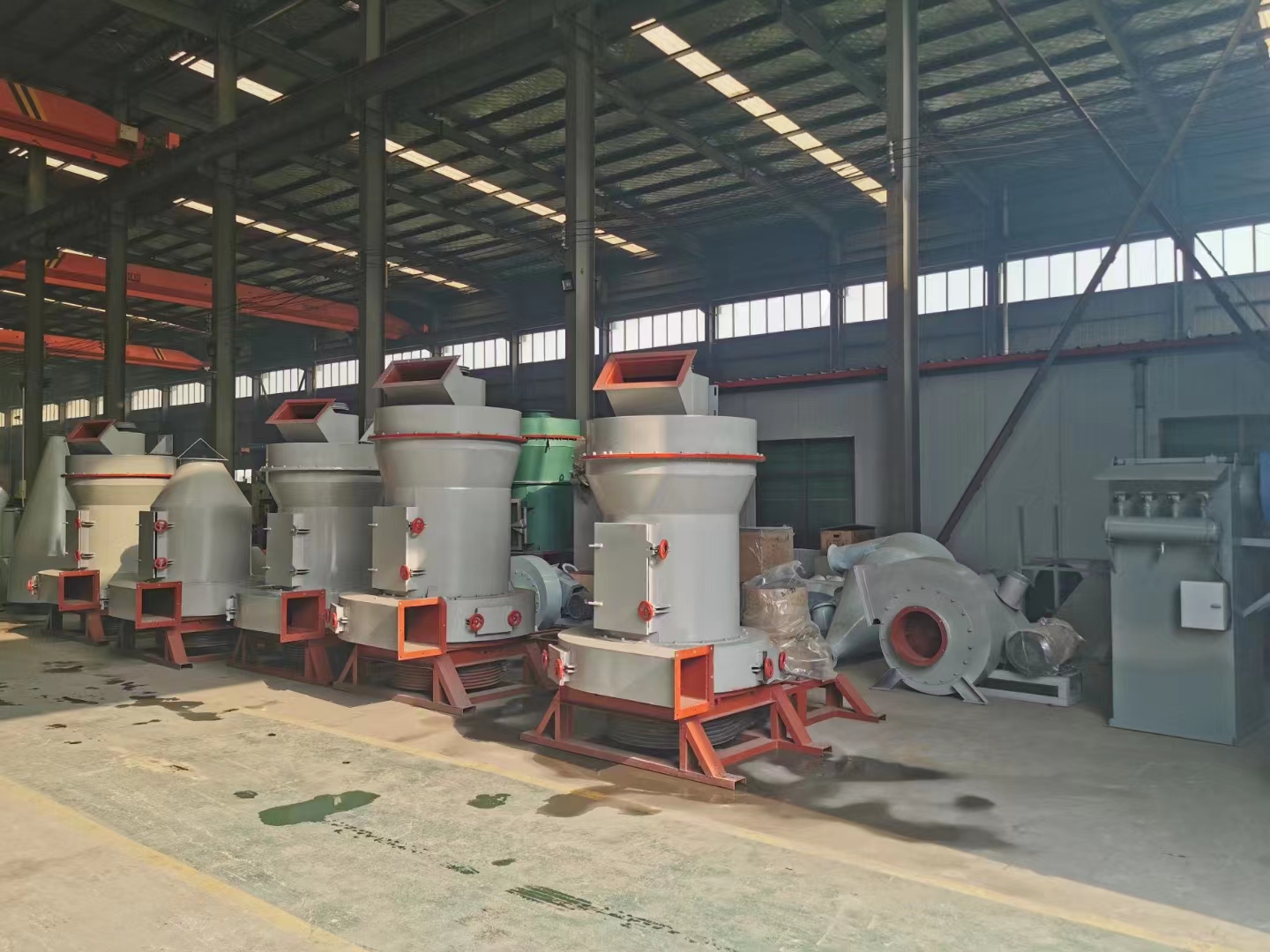

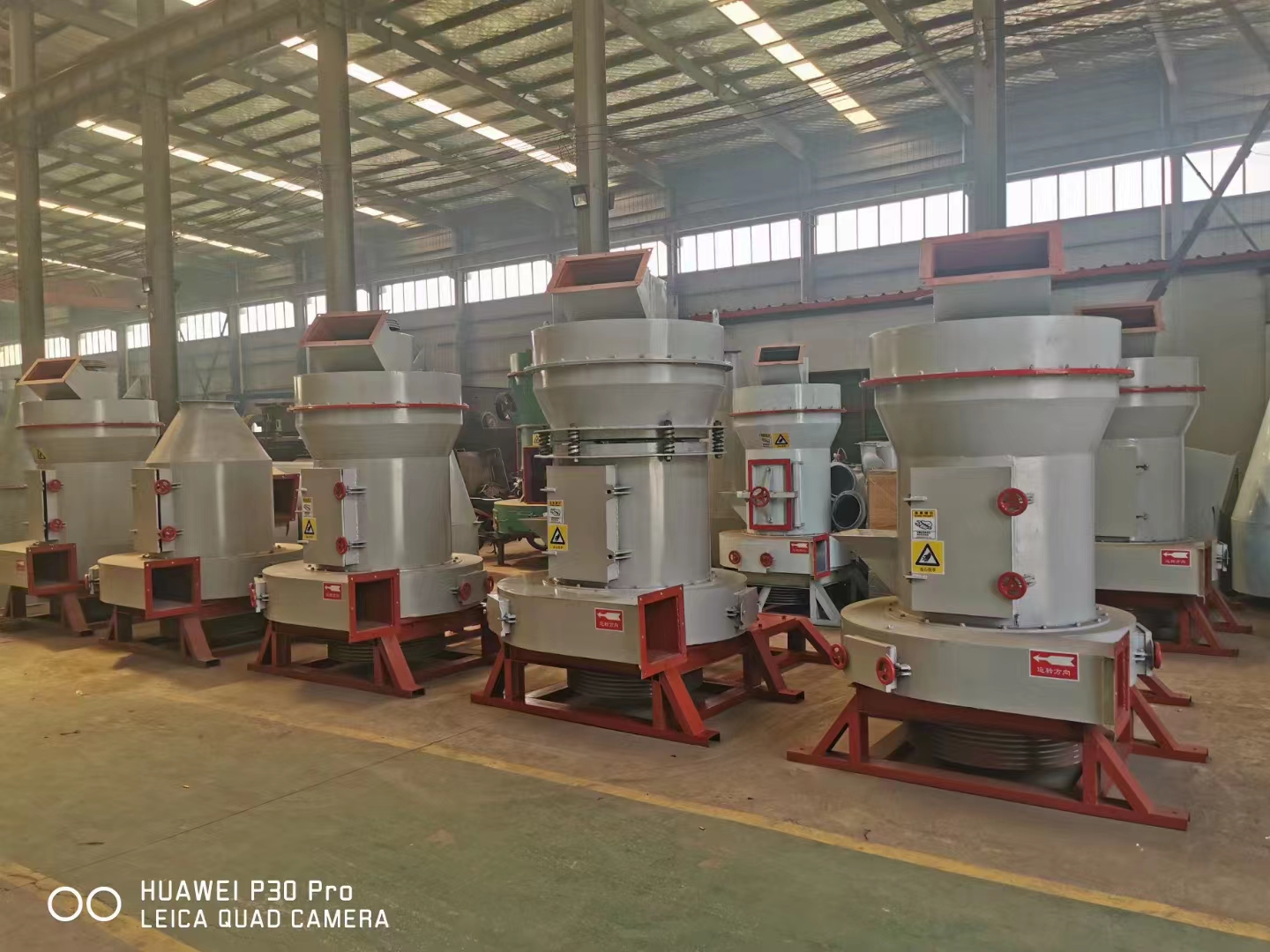

Raymond mill, also known as Raymond mill, is a new type, high efficiency and closed-loop high-precision pulverizing equipment which can replace ball mill. The Raymond mill is widely used in metallurgy, building materials, chemical industry, mining and other fields for grinding industrial and mineral products. It is suitable for processing various non flammable and explosive minerals with Mohs hardness below 7 and humidity below 6%, such as gypsum, talc, calcite, limestone, marble, potassium feldspar, barite, dolomite, granite, kaolin, pengruntu, Maifanshi and aluminum Bauxite, iron oxide red, iron ore, etc. the fineness of finished products is between 613 μ m and 440 μ m (0.613 mm-0.044 mm). Through the joint action of the analyzer and fan, it can meet the requirements of different users.
How to choose suitable Raymond mill machine?

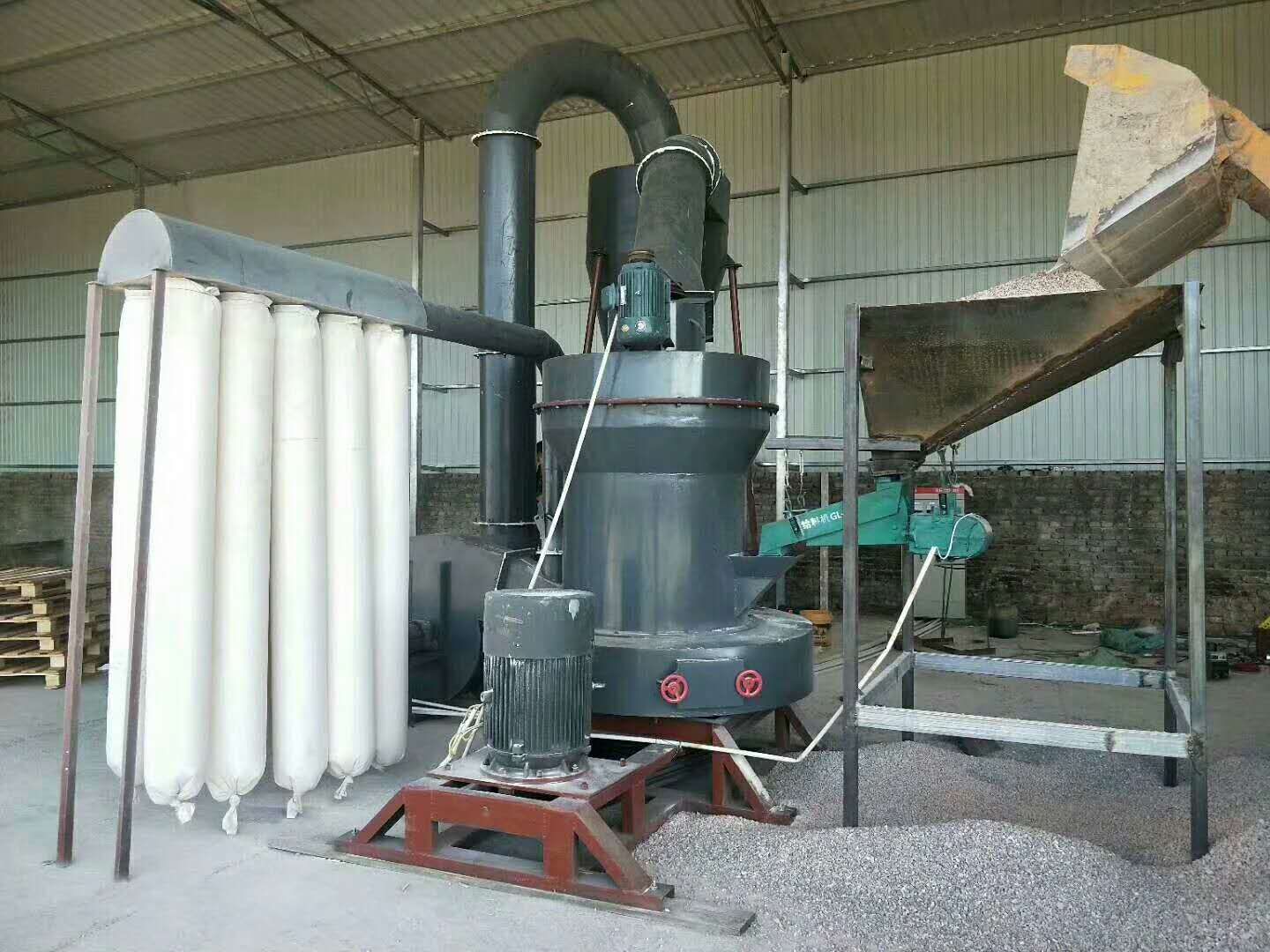

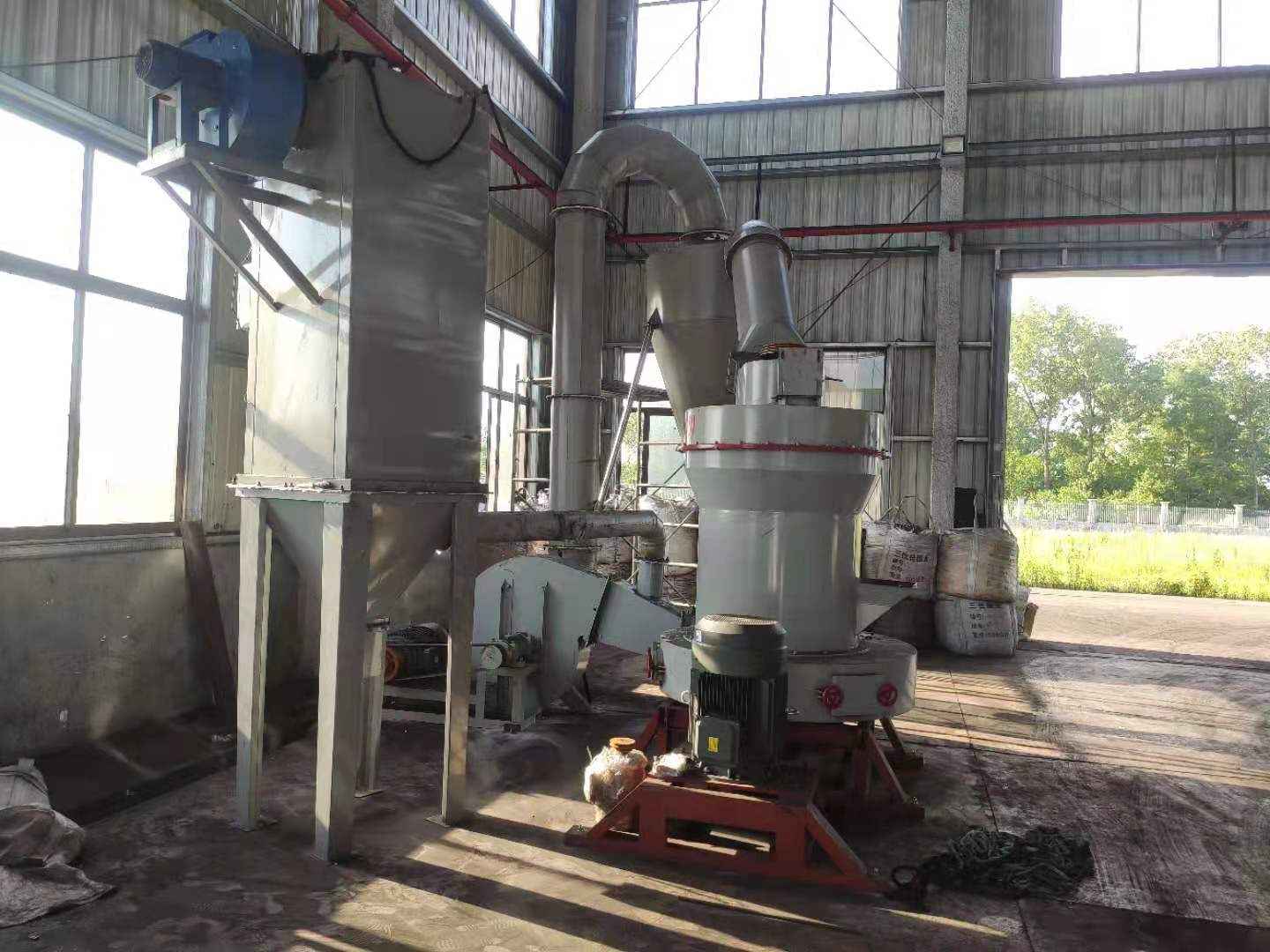

1. It is an independent production system. The whole machine is vertical structure with small floor area and strong systematization. It can form an independent production system from raw material rough processing to conveying to milling and final packaging.
2. The pass through rate is as high as 99% compared with other milling equipment.
3. The transmission is stable and reliable. The main engine transmission device of Raymond mill adopts sealed gear box and belt wheel, so the transmission is stable and reliable.
4. Good quality, reliable and durable. The important parts of Raymond mill are made of high-quality castings and profiles. The process is fine and rigorous, which ensures the durability of the whole equipment.
5. Centralized control, convenient maintenance, centralized control of electrical system, basically unmanned operation in milling workshop, and maintenance
How is works

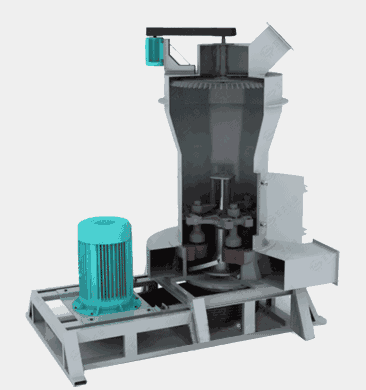

When the Raymond mill is working, the materials to be crushed are added into the machine from the feeding hopper on the side of the machine cover. Relying on the grinding roller device suspended on the plum blossom frame of the main machine, it revolves around the vertical axis. At the same time, due to the centrifugal force during rotation, the grinding roller swings outward and presses tightly on the grinding ring, so that the material is shoveled by the shovel and sent between the grinding roller and the grinding ring To achieve the purpose of crushing materials.
Technical Specifications
Model | Piece of roller | Size of the roller (mm) | Size of the ring (mm) | Feed size(mm) | Fineness of powder (mm) | Capacity (t/h) | Motor power (kW) | Weight (without motor)(t) |
YGM65 | 3 | Φ210×150 | Φ650×150 | ≤15 | 0.033-0.613 | 0.4-1.8 | 15 | 3.6 |
YGM75 | 3 | Φ260×150 | Φ780×150 | ≤15 | 0.033-0.613 | 1-3 | 18.5 | 4.8 |
YGM85 | 3 | Φ270×150 | Φ830×150 | ≤20 | 0.033-0.613 | 1.2-4 | 22 | 8 |
YGM95 | 4 | Φ310×170 | Φ950×170 | ≤25 | 0.033-0.613 | 2.1-5.6 | 37 | 14 |
YGM130 | 5 | Φ410×210 | Φ1280×210 | ≤30 | 0.033-0.613 | 2.5-9.5 | 75 | 24 |
Particle Size
