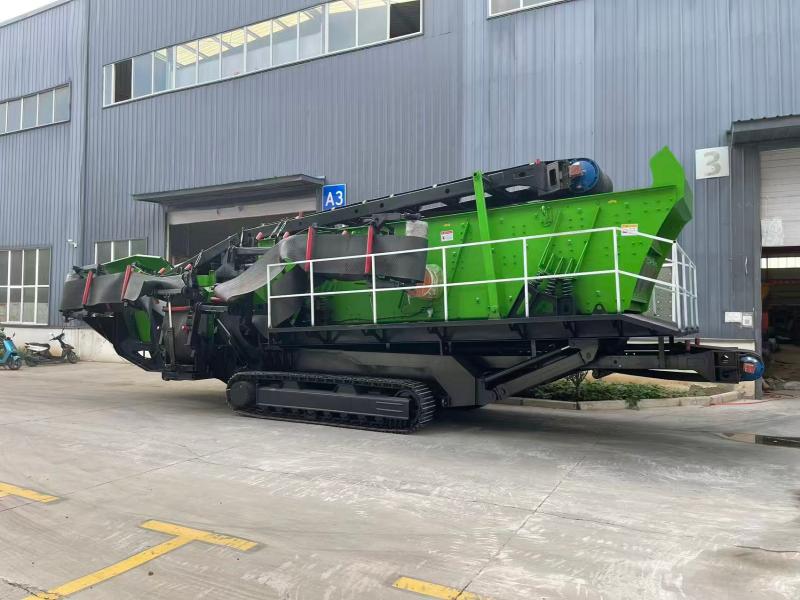

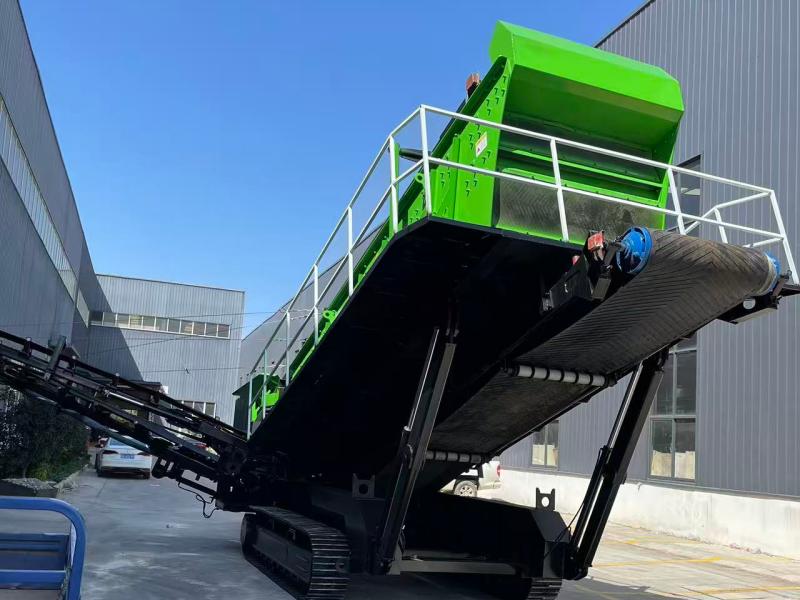

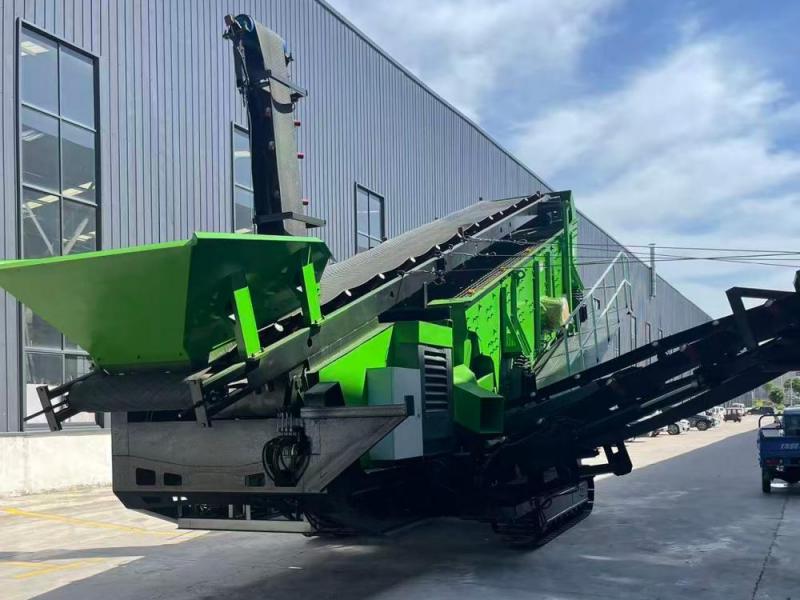

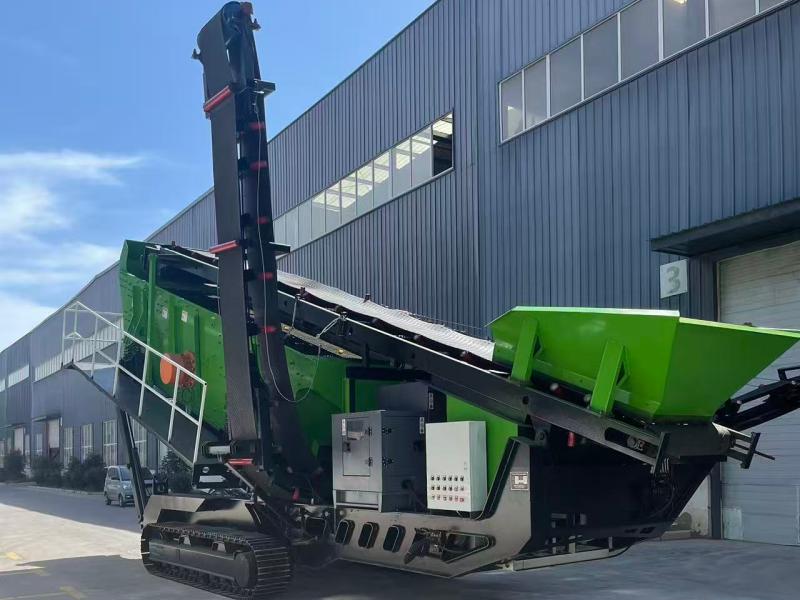

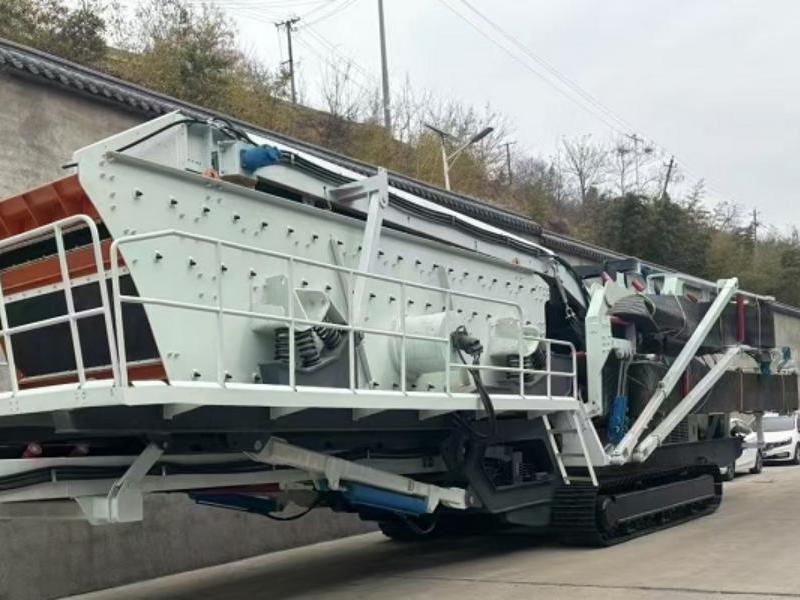

Crawler Screening Plant
Crawler Screening Plant
Crawler Screening Plant
Crawler Screening Plant
Crawler Screening Plant
Crawler Screening Plant
Feed particle size

75-360mm

Suitable Materials

Construction waste, granite, basalt, river pebbles, limestone, quartz, diabase, gold ore, etc.

SHARE THIS:

Product Description



The crawler type screening mobile crushing station is an effective crushing and screening equipment. It can be directly opened to the site. It is convenient for material approaching and processing, transfer operation, high screening efficiency and large output. It is very suitable for operations in complex terrain areas such as narrow sites and urban demolition, especially for construction waste treatment, and can also be used for mineral and hard rock screening, sand and gravel aggregate production. It can fully meet the mobile screening requirements of customers; Users can also select "screening before crushing" or "crushing before screening" according to the actual process requirements of raw materials to meet the product requirements. They can also increase the use of the equipment by adding a return conveyor to realize the conversion between closed circuit and open circuit. The crawler type screening mobile crushing station is a very good choice in terms of performance, quality and cost performance.

How to choose suitable Crawler Screening Plant machine?


1. large torque traveling motor large torque traveling motor has mature technology, large driving force and high reliability

2. the well configured and easy to repair control panel can effectively reduce the equipment maintenance time.

3. the system has strong flexibility and high production efficiency. It is a universal body and model, and the feeding unit exchange system and screening unit exchange system

4. process conversion is convenient to meet different needs. Customers can choose "screening before crushing" or "crushing before screening" to meet product requirements

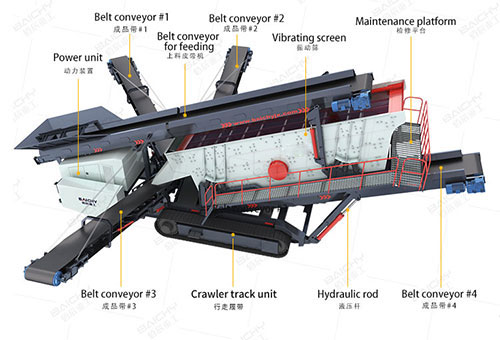

How is works


The materials are conveyed to the crushing equipment for crushing through the belt conveyor. The crushed materials fall into the belt conveyor and are sent out.

The sent materials are folded back to the belt conveyor above the vibrating screen through the rotating hopper to transport the materials to the vibrating screen.

The qualified materials screened by the vibrating screen are either sent out by the sorting hopper or sent out of the stack by the belt conveyor below the vibrating screen.

The unqualified large materials are directly sent back to the crushing chamber of the crusher for further crushingMain structure: it is mainly composed of frame part, eccentric shaft rotating part, crushing

chamber working part, safety device, discharge port adjusting device, etc.



Technical Specifications


Technical Data//ModelY3S1848Y3S1860Y3S2160
Transportation size (mm)

10100×2800×4350

11100×2820×4350

11100×3100×4350

Weight(t)161819
Tire ConfigurationDualaxialDualaxialDualaxial
Capacity(T/h)50-25060-30080-400
Belt Conveyor Under Vibrating ScreenB800×7MB800×8MB1000×8M
Vibrating Screen3YZS18483YZS18603YZS2160
Electric controlstandardcontrol box + control panelcontrol box + control panelcontrol box + control panel
OptionalControl box + LCDControl box + LCDControl box + LCD
Hydraulic legstandard444
Optional222
Hydraulic cyclinderstandard000
optional222
Genset (optional) (Kw)120120120

Note:Any change of technical data shall not be advised additionally.

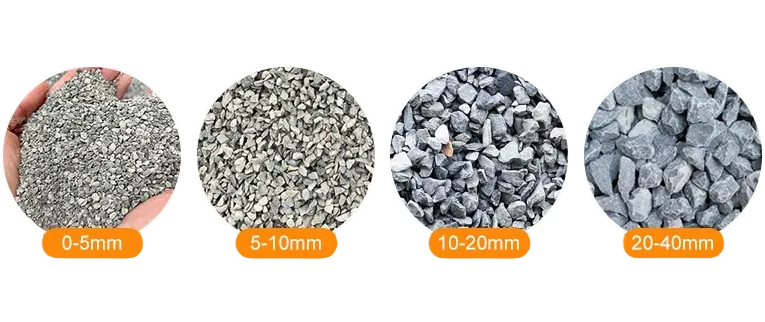

Particle Size

Crushed product size
