Product Description

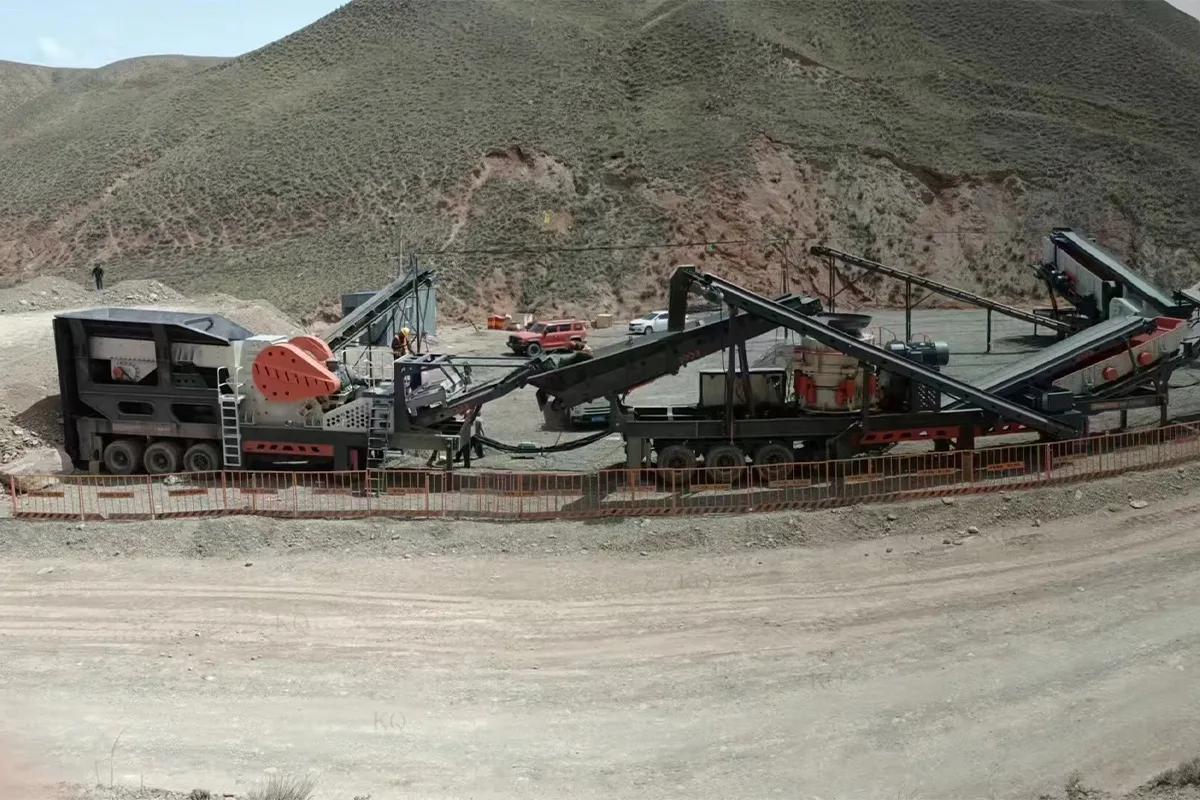

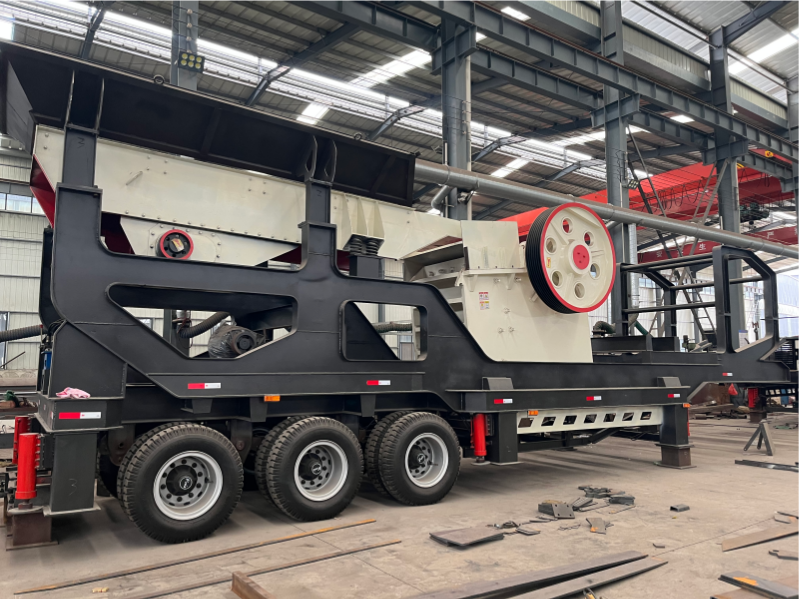

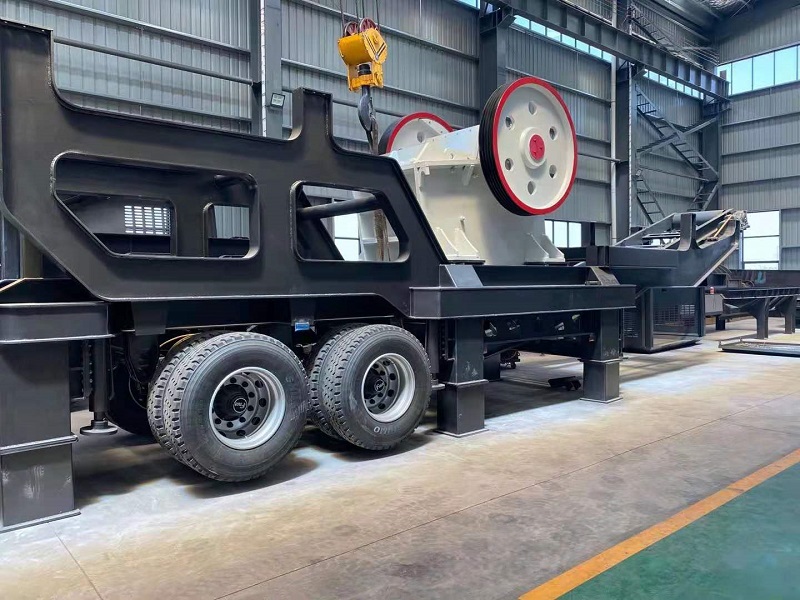

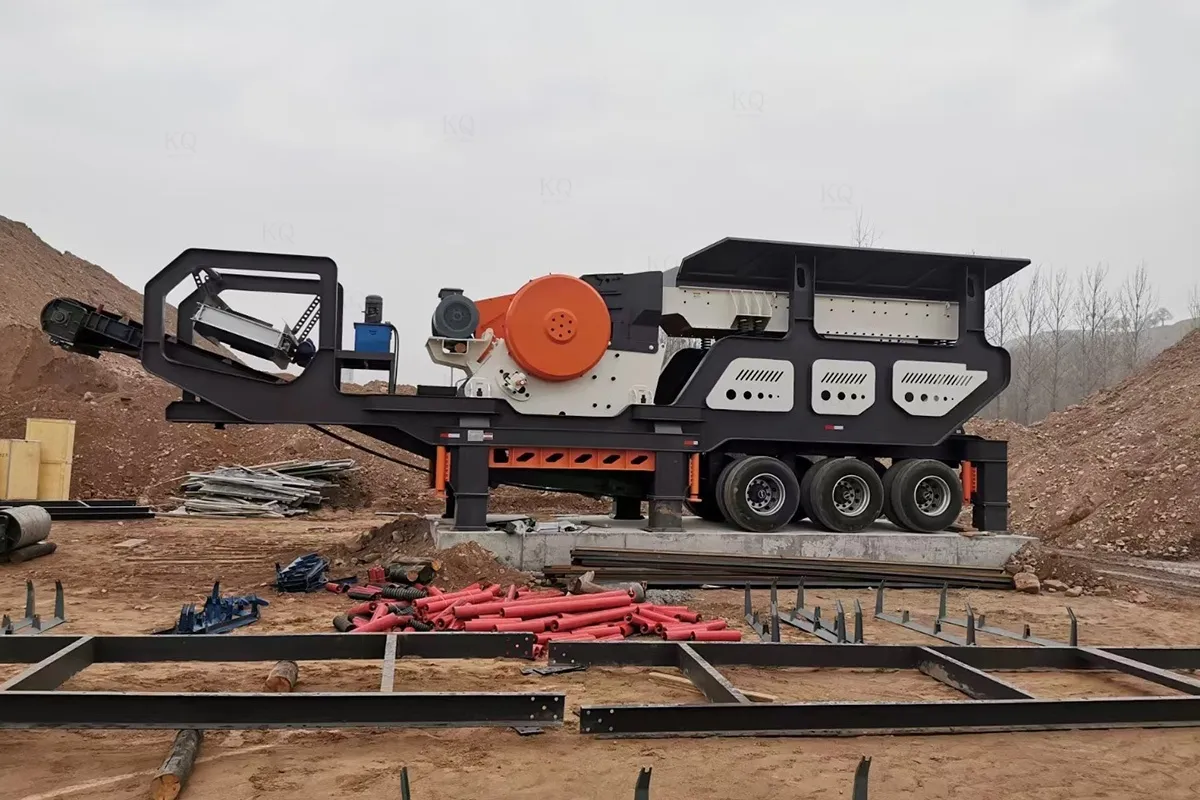

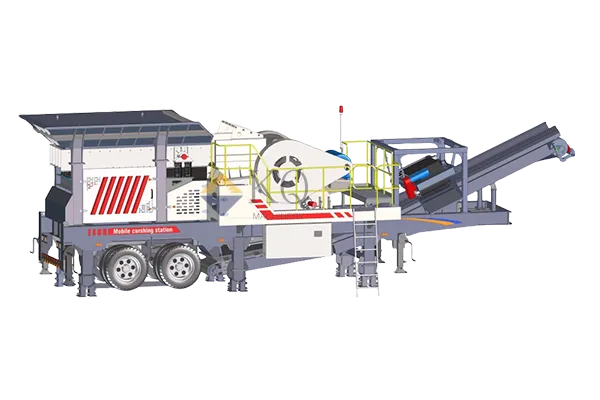

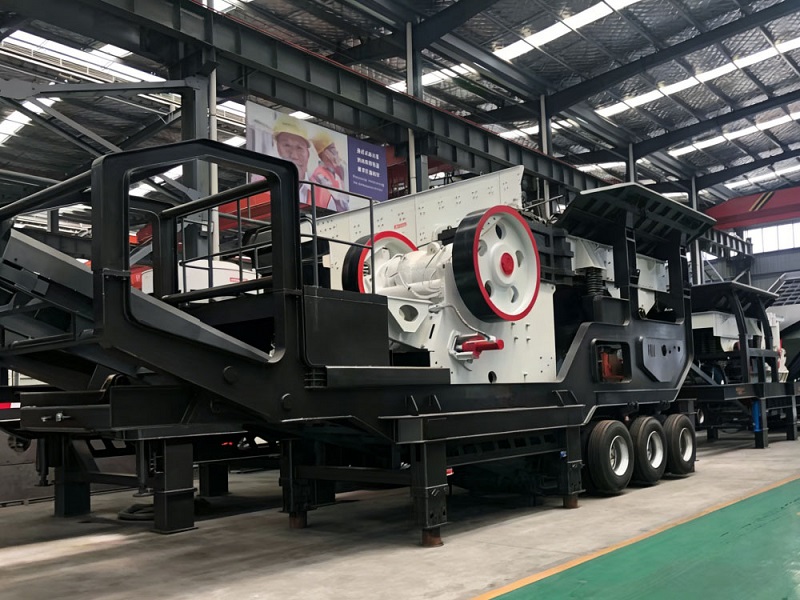

　　Jaw mobile crushing station is mainly composed of feeder, jaw crusher and belt conveyor, with the output of 85 ~ 650 tons per hour. The machine adopts integrated group operation mode, which can work alone, eliminates the complex site infrastructure and auxiliary facilities installation operation of separated components, and reduces the man hour consumption. Suitable for construction waste treatment, construction waste crushing, etc.

How to choose suitable Jaw mobile crushing station machine?

1. Unit integration. It can be operated directly, eliminating tedious infrastructure installation and man hour consumption.

2. It adopts ship type steel frame structure, low chassis, light weight, reasonable volume control, small turning radius, flexible and fashionable modeling, which can meet the needs of customers to the maximum extent.

3. The feeding guard board is hydraulically lifted, convenient for loading and unloading, convenient for fixing, stable and reliable.

4. The feeding guard board adopts a hierarchical double-layer structure, which provides a prerequisite for the expansion and personalized widening of the guard board.

5. The belt conveyor can be controlled to adjust the height and height. The iron remover is equipped with automatic lifting adjustment.

How is works

　　The materials are evenly transported to the crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.

Technical Specifications

Model (Primary Stage)	YDPZ57-8530	YDPZ80-8530	YDPZ69-9638	YDPZ96-9638	YDPZ75-1142	YDPZ106-1142	YDPZ116-1242	YDPZ116-1242
Vibrating Feeder	ZSW8530	ZSW8530	ZSW9638	ZSW9638	ZSW1142	ZSW1142	ZSW1142	ZSW1142
Jaw Crusher	PE500×750	C80	PE600×900	C96	PE750×1060	CJ106	CJ116	CJ116
Feeding Size(mm)	≤425	≤400	≤500	≤480	≤630	≤580	≤680	≤680
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Motor Power（kw）	7.5+45+4	7.5+55+4	11+55+4	11+90+4	15+110+4	15+110+4	15+132+4	15+132+4
Capacity (t/h)	40-130	50-160	90-180	60-160	110-380	150-300	200-400	200-400
Overall Size（mm）	10000x2300x4020	10000x2300x4020	11500x2300x4120	11600x2250x3710	12500x2550x4570	12850x2280x3950	13000x2550x4150	13000x2550x4150
Model (Secondary Stage)	YDPZ1210- 1548	YDPZ900- 1548	YDPZ1214- 1860	YDPZ160- 1860	YDPZ1315- 2160	YDPZ300- 2160	YDPZ1320- 2460	YDPZ400- 2460
Crusher	PF1210	PYB900	PFW1214	CS160	PFW1315	HP300	PFW1320	HP400
Feeding Size(mm)	≤400	≤115	≤430	≤205	≤500	≤210	≤500	≤250
Capacity (t/h)	70-130	15-90	100-180	109-349	130-220	110-380	160-350	180-560
Power（kw）	90	55	132	160	200	220	250	280
Vibrating Screen	3YK1548	3YK1548	3YK1860	3YK1860	3YK2160	3YK2160	3YK2460	3YK2460
Capacity (t/h)	30-275	30-275	65-586	65-586	81-720	81-720	100-810	100-810
Power（kw）	15	15	22	22	30	30	30	30
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Plant Capacity (t/h)	40-100	60-100	80-150	80-150	130-250	130-250	200-280	240-320

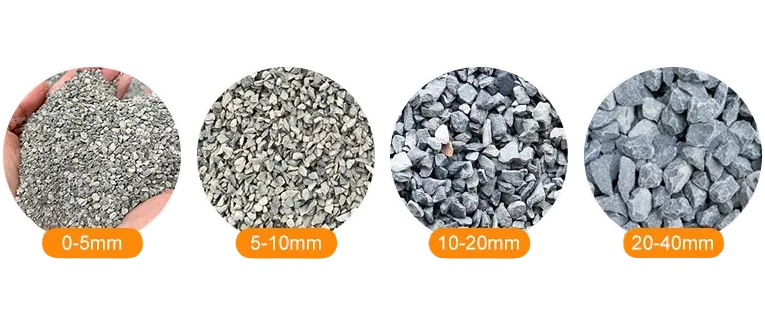

Particle Size

Crushed product size
