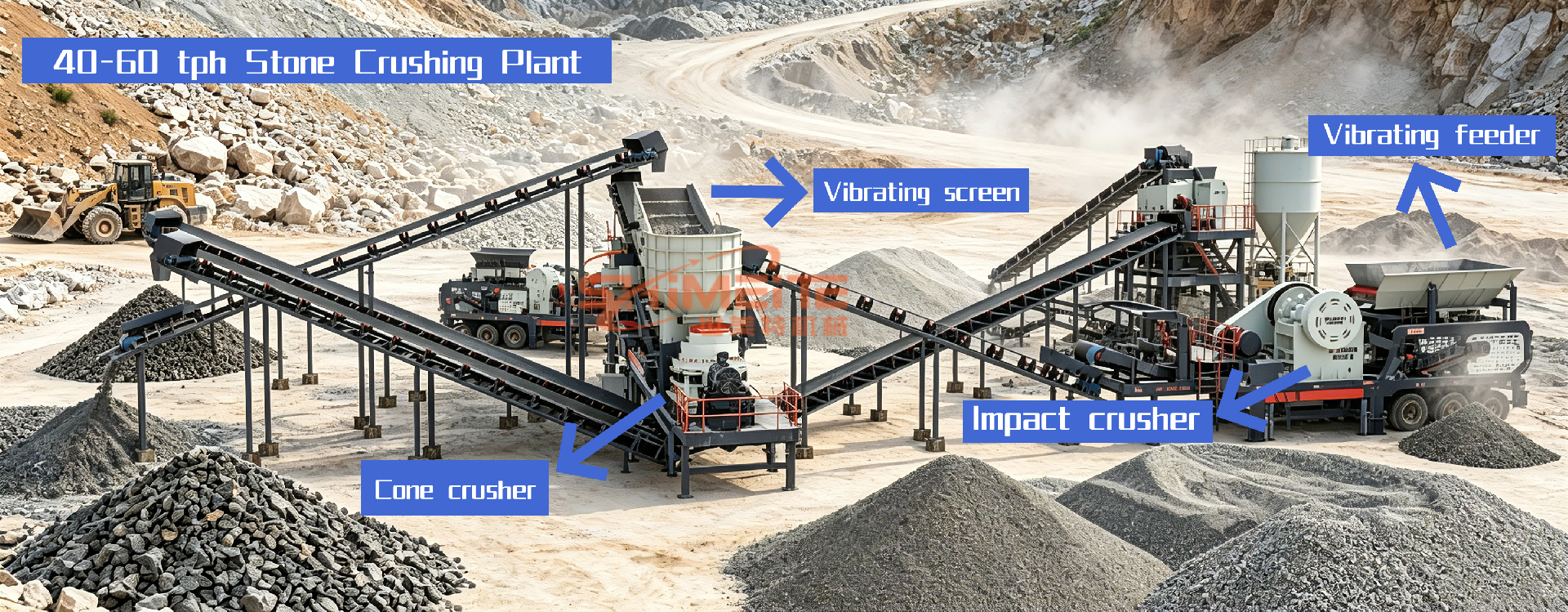

The 40-60 ton crushing production line is widely used in infrastructure projects, building materials production, and mining and aggregate processing, meeting the material supply needs of small- to medium-scale production.

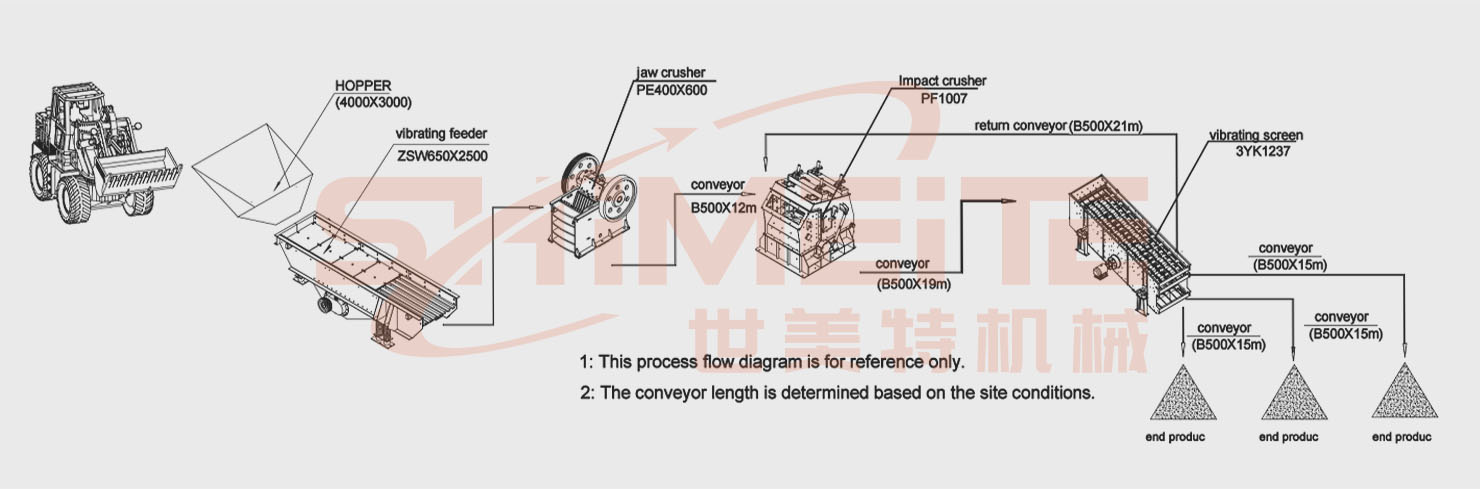

The 50 tons/hour stone crushing production line is a systematic combination of ZSW650x2500 vibrating feeder, PE400x600 jaw crusher (primary crushing), PF1007 impact crusher/PEX250x1000 fine jaw crusher (secondary crushing), YK1237 vibrating screen, belt conveyors and other equipment.
This production line can conduct refined processing of various ore raw materials such as limestone, granite and andesite, producing a variety of construction aggregates including coarse aggregate, crushed stone mixture, stone chippings and fine aggregate. Each type of aggregate is suitable for different engineering scenarios: coarse aggregate is mainly used for the production of ready-mixed concrete and asphalt concrete; crushed stone mixture is specially designed for the paving of base and subbase courses in road engineering; fine aggregate is widely used in concrete pouring, wall plastering and other construction processes.
1. Raw Material Feeding and Pretreatment
Bulk ore raw materials are evenly fed into the jaw crusher by a vibrating feeder for primary crushing. A vibrating feeder with screen bars can be optionally equipped to pre-separate small-particle raw materials, thereby effectively improving the overall crushing efficiency.
2. Secondary Fine Crushing
The materials coarsely crushed by the jaw crusher are accurately conveyed to an impact crusher, fine jaw crusher or cone crusher through a belt conveyor for secondary fine crushing, so as to precisely control the finished product particle size.
3. Screening Classification and Finished Product Discharging
The crushed materials are conveyed to a vibrating screen for multi-level classification and screening, which accurately separates finished aggregates of different specifications such as 0-5mm, 5-10mm, 10-20mm and 20-40mm. The screened aggregates can be directly piled and stored for external sales, or immediately applied to engineering sites such as road construction.
Global Successful Cases
This 40-60 tons per hour production line has been put into operation in many countries and regions around the world, covering the processing of various raw materials such as limestone, granite, andesite and dolomite. The actual operation effect is excellent, and customer feedback is positive.
Typical cases are as follows:

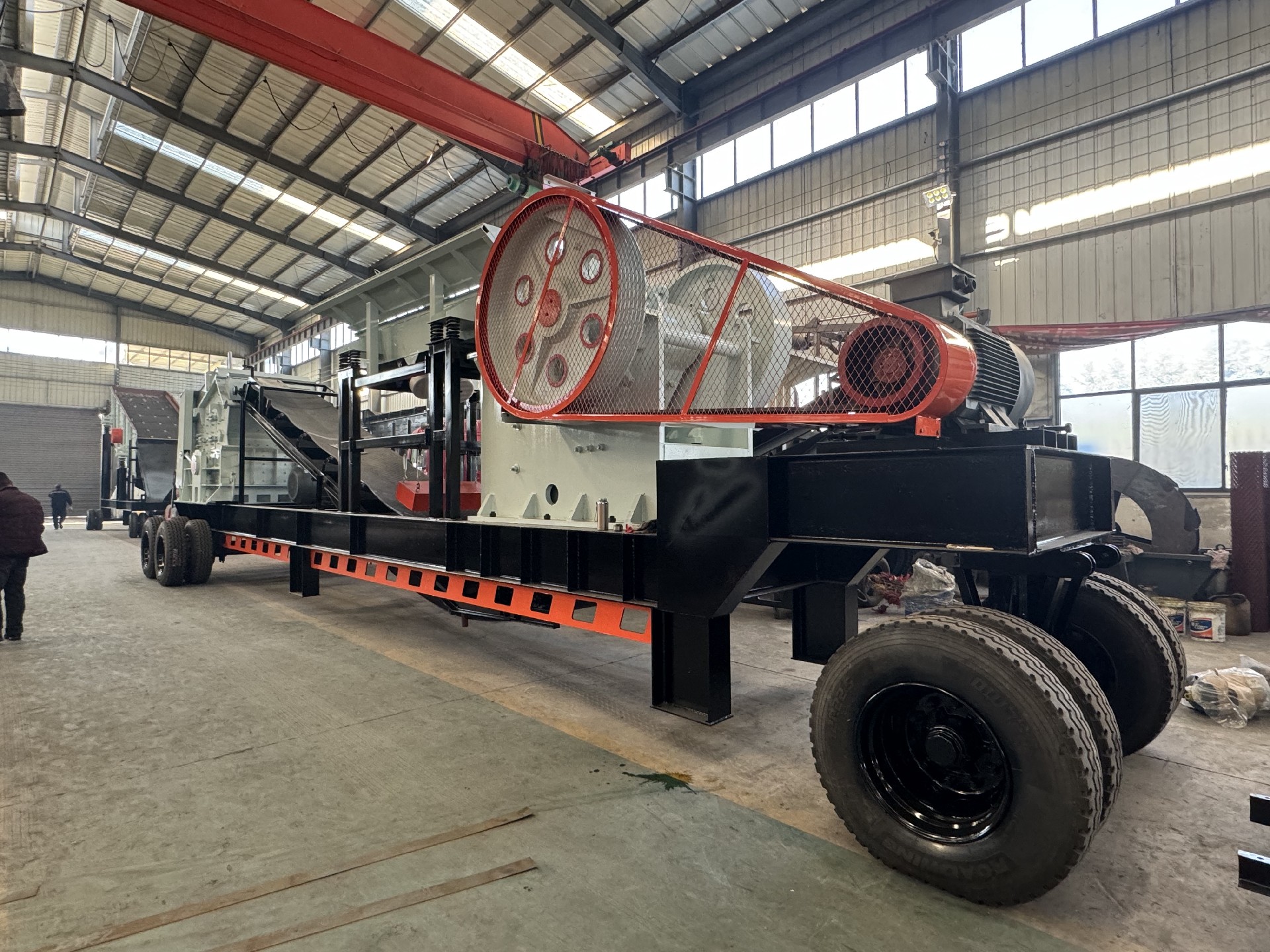

- Guinea 50 TPH Mobile Crushing Production Line: The core equipment includes PE series jaw crusher, PEX series fine jaw crusher and vibrating screen. Combined into a mobile frame, the finished aggregate has uniform particle size, which meets the material standards of local infrastructure projects.
- Indonesia 60 TPH Bluestone Crushing Production Line: The production line operates stably, with low dust emission and good particle shape during aggregate processing, which adapts to the needs of the local aggregate market.
- Kunming, China Crushing Production Line: It can crush and screen various raw materials such as river pebbles, basalt, granite, iron ore, copper ore, cement clinker and limestone, meeting the production needs of various aggregates in China.
- Mexico 50 TPH Dolomite Crushing Production Line: The core includes vibrating feeder, jaw crusher, impact crusher, vibrating screen and belt conveyor. The whole set of equipment adapts to the characteristics of local dolomite raw materials and has extremely high production efficiency.
As a professional manufacturer of stone crushing production line equipment, we provide customers with one-stop full-process services from scheme design to after-sales maintenance, solving all worries in the production process. The core service contents are as follows:
1. Free Customized Solutions: Based on information provided by the customer—including raw material types, production capacity requirements, site area, and finished product specifications—we design production line layouts at no cost.
2. On-Site Technical Guidance: We dispatch engineers to the project site to provide comprehensive guidance during equipment installation and commissioning until the system is operating normally and stably.
3. Lifetime Spare Parts Supply: Throughout the equipment’s entire service life, we provide high-quality, genuine spare parts at reasonable prices and ensure timely delivery.
4. Year-Round After-Sales Service: Our after-sales service team is on standby 365 days a year.
