It is primarily used to produce manufactured sand and crushed stone aggregates for construction, supplying projects such as real estate development, highways, railways, bridges, water conservancy, and ready-mix concrete plants.
0 tph sand crusher plant work
150-250tph Sand Making Plant Introduction
Sand making plant is a special production line for producing sand and aggregate materials for construction. In the sand making plant, natural rocks, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand, so as to replace the natural river sand for the buildings and construction industries that need high-quality aggregates. Any kind of material with different hardness grades such as limestone, basalt, granite, dolomite, gabro can be crushed. In addition to sand (fine materail) it is also possible to produce other 3 different final fractions simultaneously.
250tph Sand Making Plant Features
1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.
2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.
3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.
4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.
5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.
How does 250 tph sand crusher plant work?

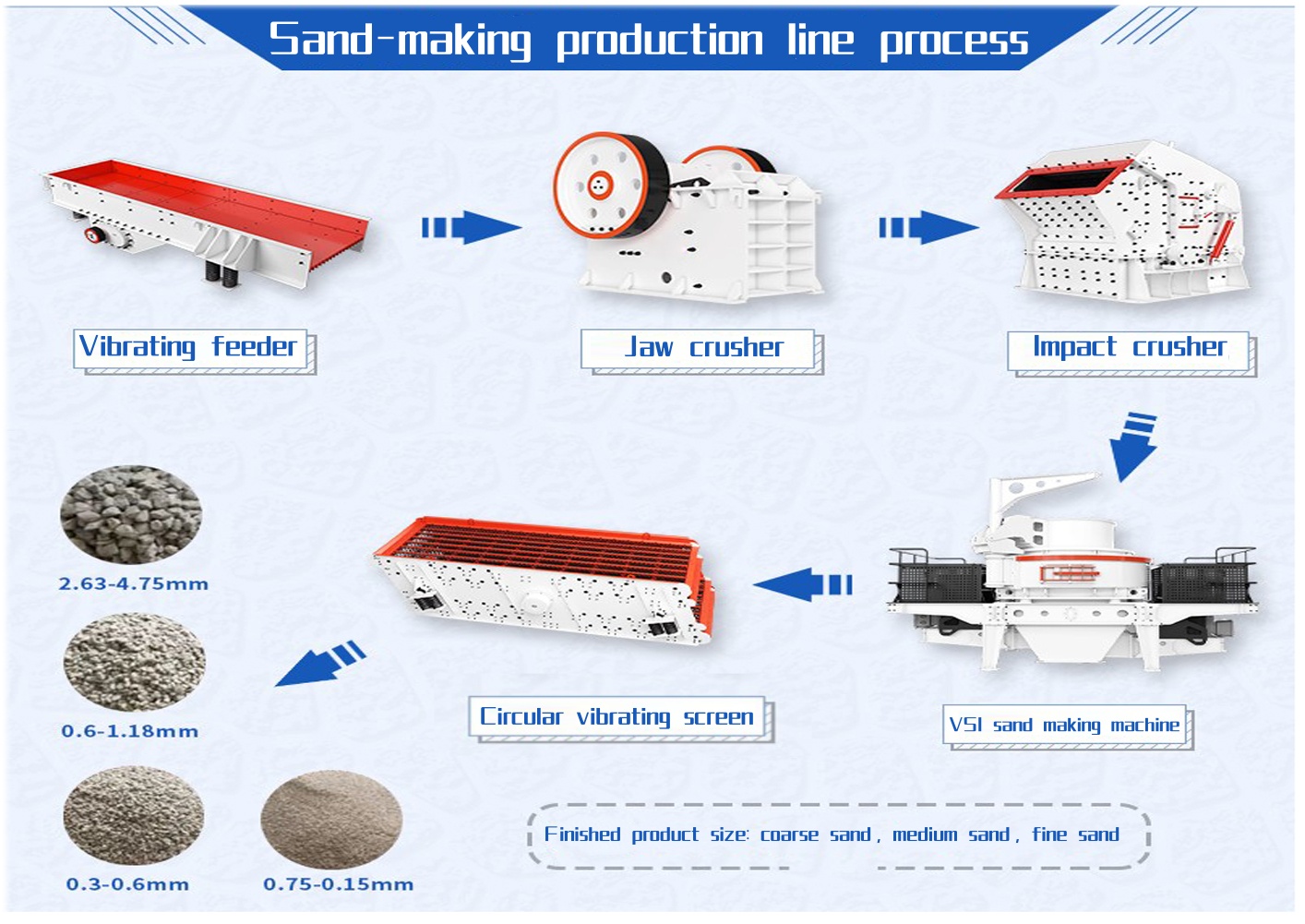

1.Crush and screen process
Raw stone materials go to Jaw crusher for primary crushing. Then the materials are transferred by the belt conveyor to secondary crusher ( impact crusher or Cone crusher) for further crushing. Vibrating screen will grade the materials, where stones that meet the granularity standard will be sent to VSI crusher (sand-maker), while the rest will be returned to crush again. Materials that don’t meet the required particle size will be sent back to the sand maker for further process or as final aggregate products. In wet type, the screen could be add a water-spraying system to remove the impurities in advance.
2.Sand washing process
Part of the stones processed by VSI crusher (sand maker) will be made into sand and become sand products after being washed by sand washing machine and sand recycling machine. The sand washing machine could choose wheel type or spiral ty pe based on the site situation. Sand dewartering and recylcing machine is to help get fine sand and prevent sand loss. Filter machine and sand dryer is optional too according to demand. After the washing process, we get the finished products.
As a professional manufacturer of stone crushing production line equipment, we provide customers with one-stop full-process services from scheme design to after-sales maintenance, solving all worries in the production process. The core service contents are as follows:
1. Free Customized Solutions: Based on information provided by the customer—including raw material types, production capacity requirements, site area, and finished product specifications—we design production line layouts at no cost.
2. On-Site Technical Guidance: We dispatch engineers to the project site to provide comprehensive guidance during equipment installation and commissioning until the system is operating normally and stably.
3. Lifetime Spare Parts Supply: Throughout the equipment’s entire service life, we provide high-quality, genuine spare parts at reasonable prices and ensure timely delivery.
4. Year-Round After-Sales Service: Our after-sales service team is on standby 365 days a year.
Let our team help you select the right product.
Talk to our experts and we can help you meet all template requirements from scratch. Let us provide assistance for your next project.
